YJACK® FOR A MORE CONNECTED TECH.
The YJACK® Series is a network of devices that form a new platform offering a total HVAC/R diagnostics solution. Multiple devices can measure system and environmental parameters. When coupled with either the TITANMAX™ and P51-870 TITAN® Digital Manifolds, the user has the necessary information for complete system diagnostics.
Each device utilizes Low Energy Bluetooth® (BLE) technology to interconnect with each other and any smart device: Android and iOS. All YJACK® Series devices can also communicate directly with either the TITANMAX™ and P51-870 TITAN® Series Digital Manifolds simultaneously. The YJACK VIEW® App provides ease of access to all information measured by the YJACK® Series of devices.
400 ft line-of-sight signal range on YJACK PATH, YJACK PRESS and YJACK MANO
1000 ft line-of-sight signal range on YJACK® Temperature Clamp, YJACK® Temperature Strap, YJACK DEW®, YJACK VAC®, YJACK AMP® and YJACK FLOW®*
* See product web pages for starting serial numbers
THE YJACK® PYRAMID AS SEEN AT AHR
YJACK FLOW™ Anemometer 67069
Measures and displays duct air speed readings in fpm, f/s, m/s and m/m. Automatically calculates quantity and location of readings in ducts.
Learn More
YJACK MANO® Wireless Dual Port Manometer 67068
Perform static pressure measurements with ease. Pressure probe tips and adapters included for duct and gas pressure measurements.
Learn More
YJACK AMP® CURRENT PROBE 67067
Flexible spiral cable and compact clamp body for easy access in difficult to reach areas for measurements up to 50 amps AC.
Learn More
YJACK PRESS® PRESSURE GAUGE 67065
Integrated charging port allows for easy adjustment of refrigerant charge while checking system pressures.
Learn More

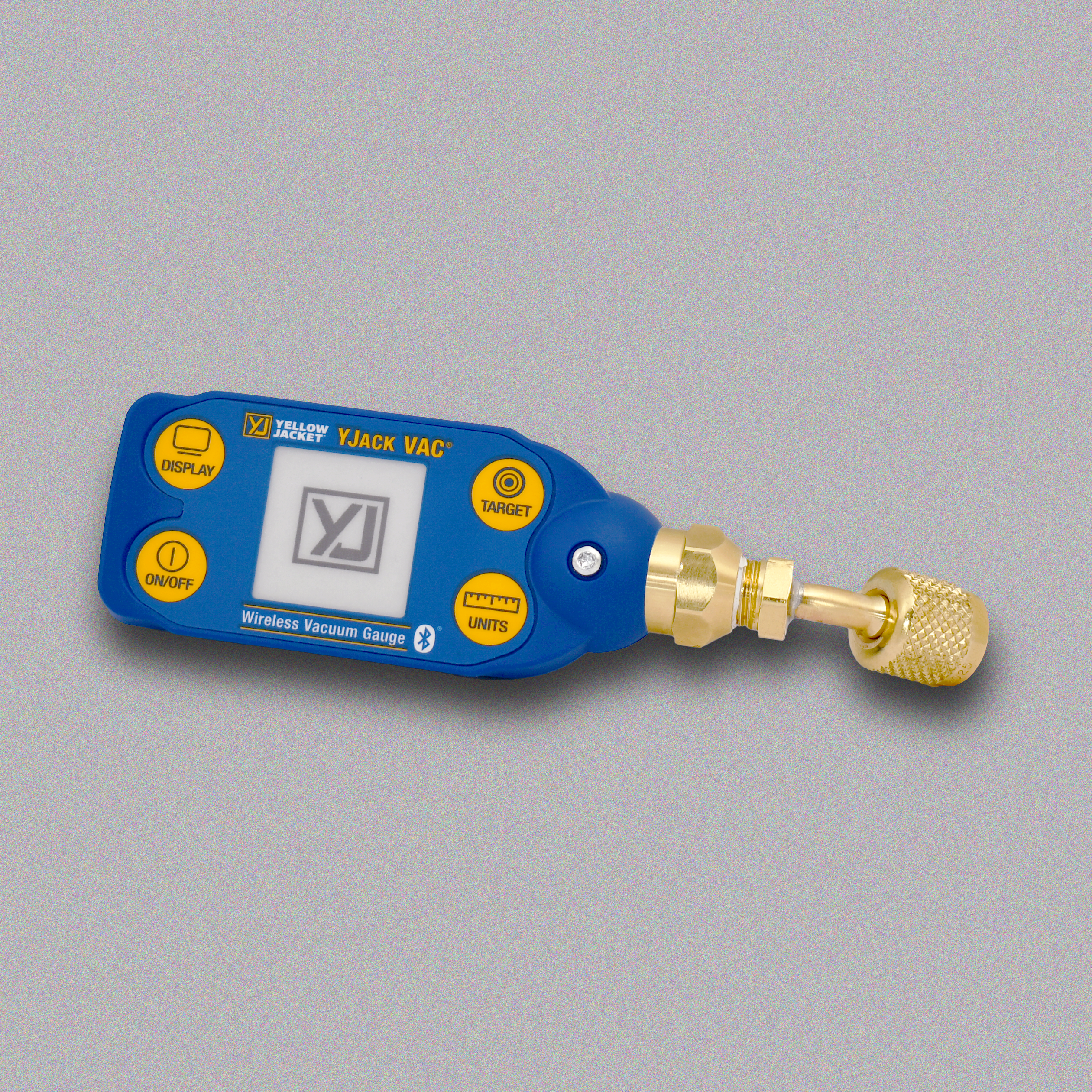

YJACK VAC® VACUUM GAUGE 67066
Robust sensor resists pressure shock and oil contamination.
Learn More
YJACK PATH® RANGE EXTENDER 67060
Extend your working area and connect up to 8 devices for complete system analysis
Learn More
YJACK DEW® PSYCHROMETER 67063
Measure temperature, humidity, wet bulb, dew point and more in ambient air or ventilation ducting
Learn More
YJACK® Temperature Clamp Kit 67070
(2) YJACK® Temperature Clamps, (1) YJACK PATH® Range Extender
Learn More
YJACK® Temperature/Humidity Kit 67071
(2) YJACK® Temperature Clamps, (2) YJACK DEW® Psychrometers, (1) YJACK PATH® Range Extender
Learn More
YJACK® CHARGING KIT 67072
(2) YJACK PRESS® Pressure Gauges, (2) YJACK® Temperature Clamps
Learn More
YJACK® CHARGING & AIR KIT 67073
(2) YJACK PRESS® Pressure Gauges, (2) YJACK® Temperature Clamps, (2) YJACK DEW® Psychrometers
Learn More
YJACK® CHARGING & EVACUATION KIT 67074
(2) YJACK PRESS® Pressure Gauges, (2) YJACK® Temperature Clamps, (1) YJACK VAC® Vacuum Gauge
Learn More| UPC# | Description |
|---|---|
| 67069 | YJACK FLOW™ Anemometer |
| 67068 | YJACK MANO® Dual Port Manometer |
| 67067 | YJACK AMP® Current Probe |
| 67065 | YJACK PRESS® Pressure Gauge |
| 67066 | YJACK VAC® Vacuum Gauge |
| 67060 | YJACK PATH® Range Extender |
| 67063 | YJACK DEW® Psychrometer |
| 67062 | YJACK® Temperature Strap |
| 67061 | YJACK® Temperature Clamp |
| 67070 | YJACK® Temperature Clamp Kit: (2) YJACK® Temperature Clamps, (1) YJACK PATH® Range Extender |
| 67071 | YJACK® Temperature/Humidity Kit: (2) YJACK® Temperature Clamps, (2) YJACK DEW® Psychrometers, (1) YJACK PATH® Range Extender |
| 67072 | YJACK® Charging Kit: (2) YJACK PRESS® Pressure Gauges, (2) YJACK® Temperature Clamps |
| 67073 | YJACK® Charging & Air Kit: (2) YJACK PRESS® Pressure Gauges, (2) YJACK® Temperature Clamps, (2) YJACK DEW® Psychrometers |
| 67074 | YJACK® Charging & Evacuation Kit: (2) YJACK PRESS® Pressure Gauges, (2) YJACK® Temperature Clamps, (1) YJACK VAC® Vacuum Gauge |
YJACK VIEW® APP
The YELLOW JACKET® YJACK VIEW® App provides seamless integration with YJACK®, TITANMAX™ and P51-870 TITAN® devices offering a complete HVAC/R system diagnostic solution. Just use your YJACK®, TITANMAX™ and P51-870 TITAN® devices with your smart phone for complete system analysis.
Easily receive and analyze live data from all powered on, nearby YJACK®, TITANMAX™ and P51-870 TITAN® devices including system pressure, temperature, vacuum, psychometrics and current draw. Includes a variety of session types useful for diagnosing any HVAC/R system.

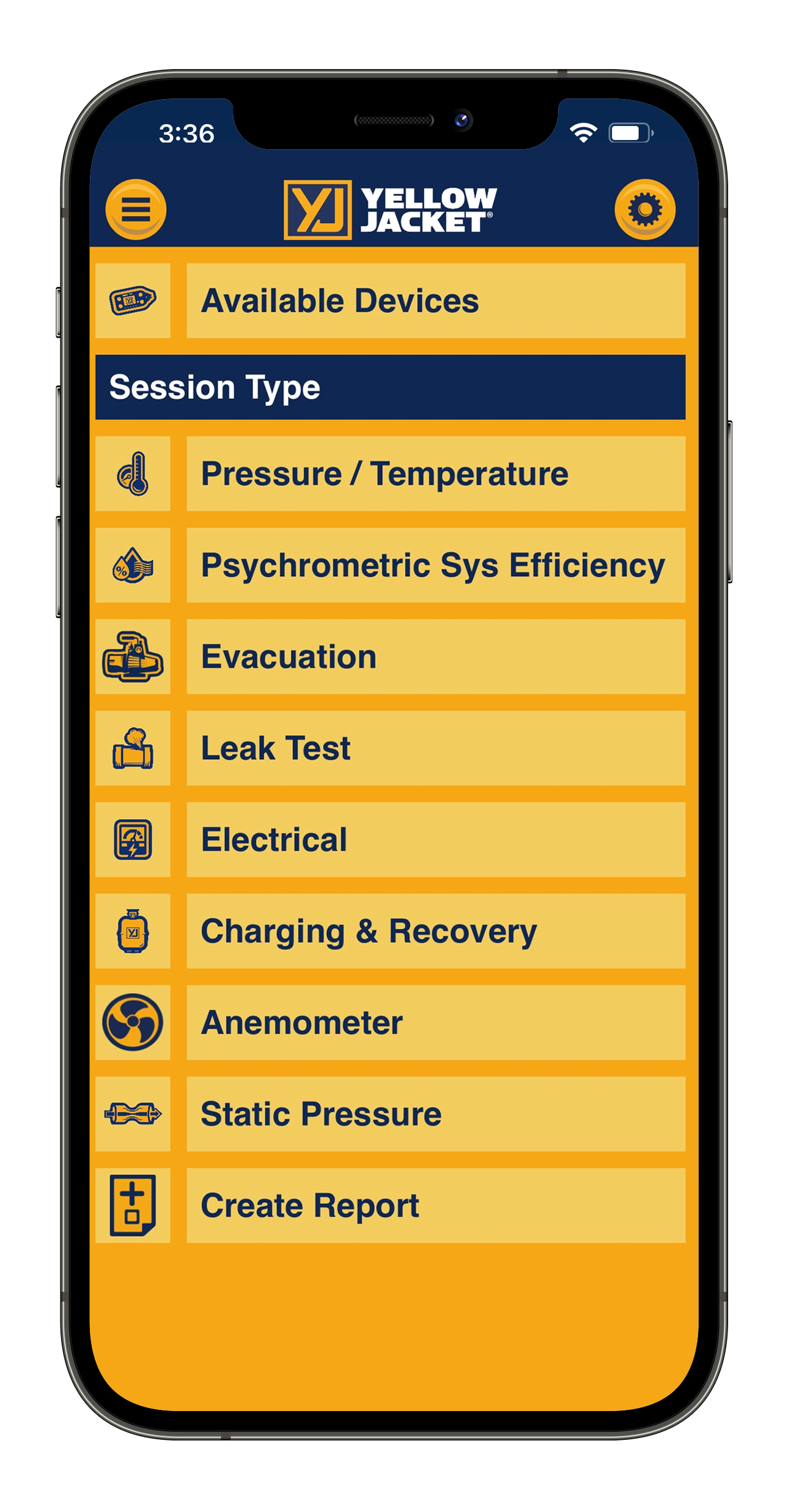

YJACK VIEW® SMART APPLICATION:
Measure HVAC/R system pressure, temperature, saturation temperature, superheat and subcooling
Monitor system evacuation status
Check indoor air comfort and system efficiency with psychromeric air calculations: percent relative humidity, dry bulb, wet bulb and dew point temperature measurements
Perform system leak tests and track pressure charge over time
Measure system charge with scale weight readings during charging and recovery operations
Take electrical current measurements and analyze critical system power information
Generate highly customized and detailed service reports capturing system readings and equipment information
Monitor status of all nearby YJACK® and P51-870 TITAN® devices
Freely switch between multiple simultaneous sessions without loss of data
Customize data view for each measurement
Create data logs to be saved or emailed from your smart device
Choose from 126 refrigerant profiles found in the REFPROP database
Available on iOS (version 10 or later) and Android (version 8 or later) smart devices
YJACK VIEW® HIGHLIGHTS:
Effortlessly create and manage a network of connected HVAC/R system diagnostic devices
Compatible with all YJACK® and P51-870 TITAN® devices (firm-ware version v2.0 and later)
No device connections necessary – seamlessly move in and out of range of devices without reconnecting or relaunching application
Freely navigate between available session types, multiple sessions at one time
New session types including Psychrometric System Efficiency and Leak Test as well as communication capabilities with YJACK PRESS™, YJACK VAC™, YJACK AMP™ in v3.0 or later
Easily place and monitor status of all YJACK® and P51-870 TITAN® devices from one screen
Adjustable datalog formatting and multiple sampling intervals
SUPPORTED YELLOW JACKET® DEVICES INCLUDE:
TITANMAX™ Digital Manifold
P51-870 TITAN® Digital Manifold
YJACK PATH® Range Extender
YJACK® Temperature Clamp
YJACK® Temperature Strap
YJACK DEW® Psychrometer
YJACK PRESS® Pressure Gauge
YJACK VAC® Vacuum Gauge
YJACK AMP® Current Probe
YJACK MANO® Manometer
YJACK FLOW™ Anemometer
Wireless Refrigerant Scale (P/N 68864)
-
PRESSURE / TEMPERATURE
View system pressure and temperature data as reported by any combination of YJACK PRESS™ devices, temperature devices or the TITANMAX™ or P51-870 TITAN® units. Easily select and favorite commonly-used refrigerants for calculating system properties including saturation temperatures and calculated system superheat/subcooling. Effortlessly manipulate data view types, including traditional large numeric format, analog gauge (pressure only) or graphically.
-
PSYCHROMETRIC SYSTEM EFFICIENCY
Analyze psychrometric data as reported by (2) YJACK DEW® devices. Ensure maximum home comfort through wireless supply and return relative humidity, dry bulb, wet bulb, dew point temperatures and enthalpy calculations. Compare system-rated capacity to actual output for overall system efficiency. View available data as traditional large numeric format or graphically.
-
EVACUATION
Monitor system vacuum as reported by a TITANMAX™ or P51-870 TITAN® external wired vacuum sensor or the YJACK VAC® Wireless Vacuum Gauge. Data can be displayed as traditional large numeric format, analog gauge or graphically. Adjustable vacuum pressure target and hold timer ensures all non-condensable gases are removed from the system during evacuation.
-

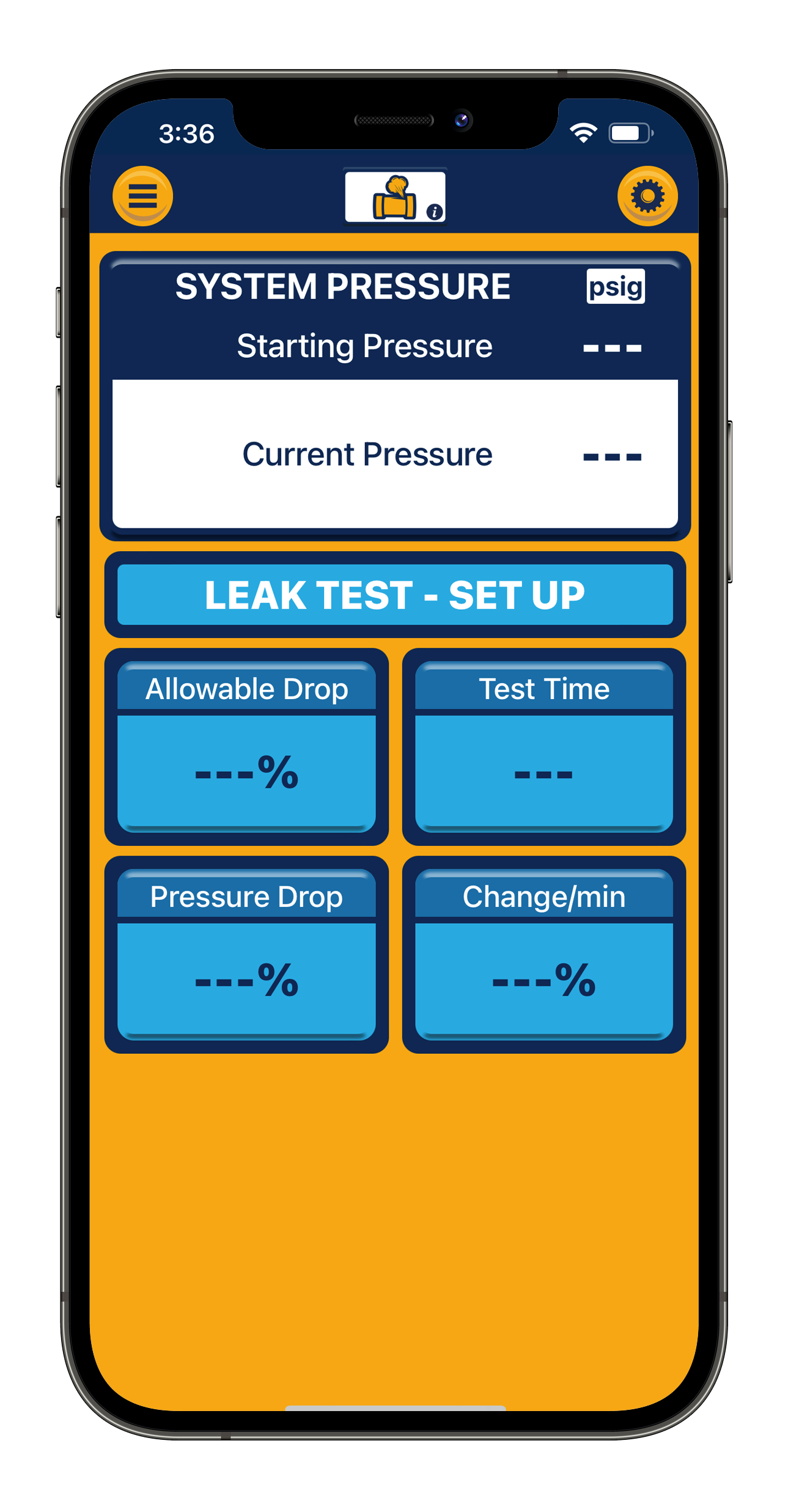

LEAK TEST
Monitor pressure changes during nitrogen leak testing to verify that system is tight. View system pressure trends as traditional large numeric format or graphically.
-

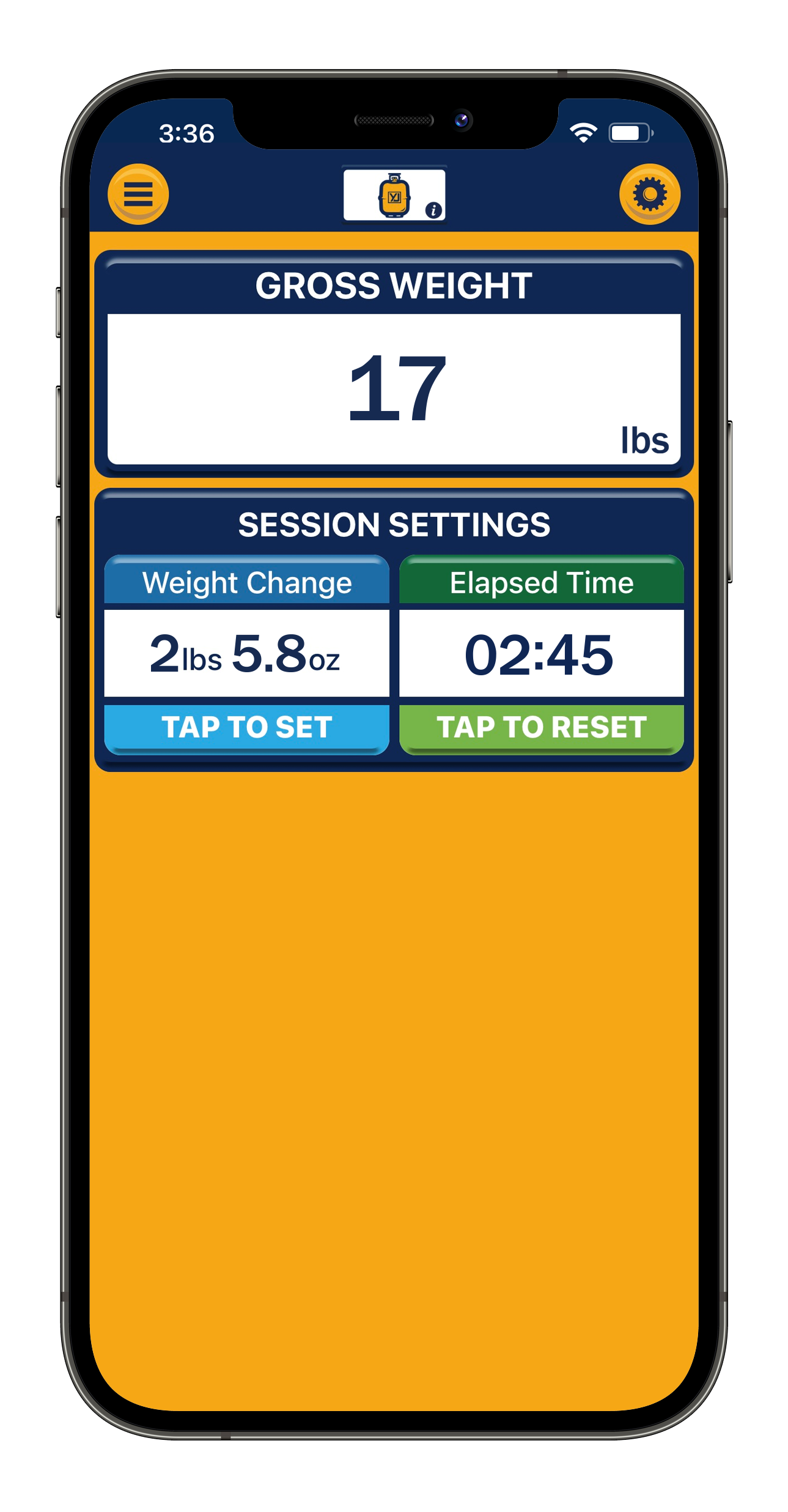

CHARGING & RECOVERY
Display scale readings from the Wireless Charging Scale (P/N 68864) to accurately charge systems or to determine system charge amount through recovery.
-

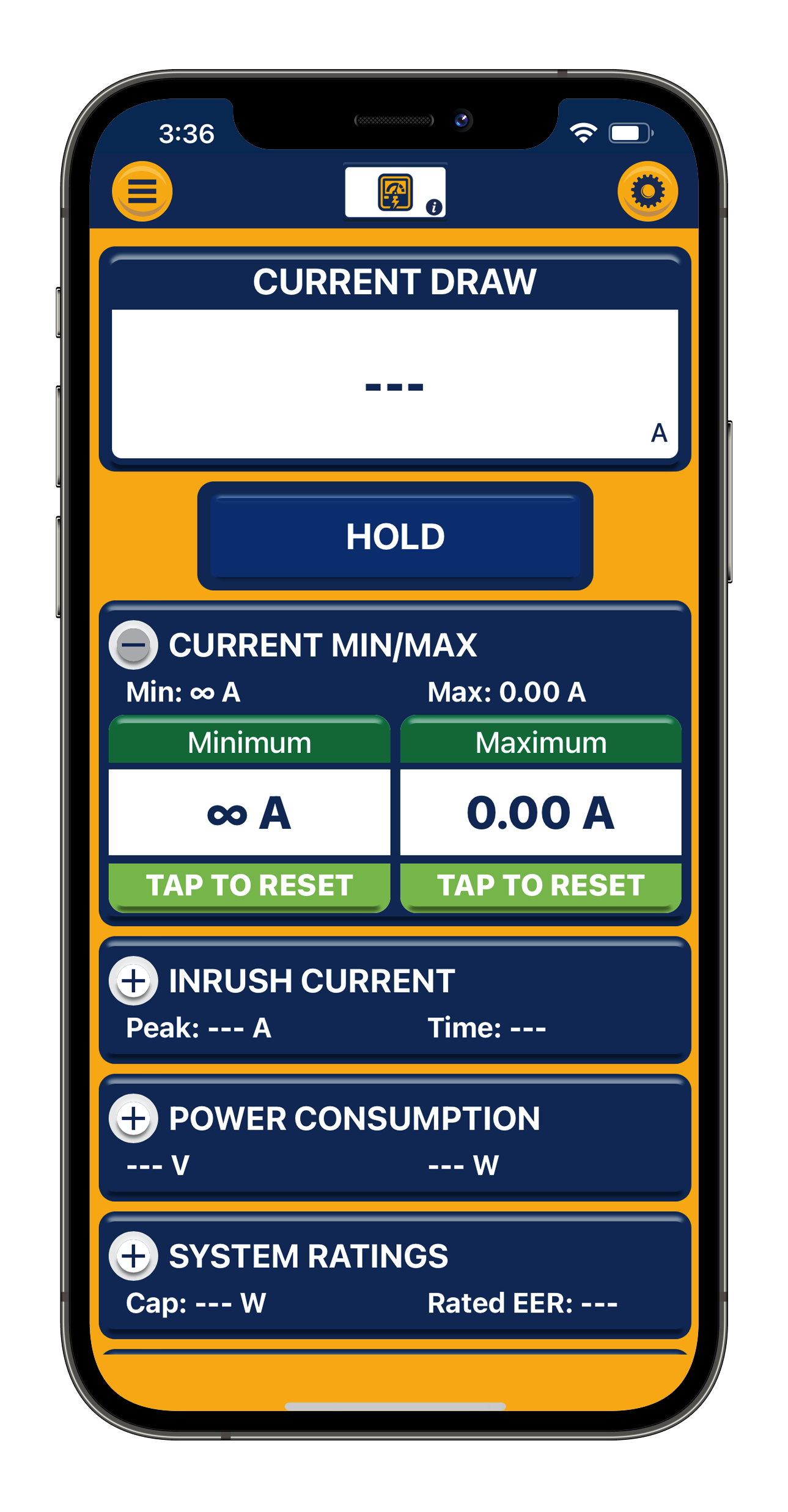

ELECTRICAL
Electrical session displays readings from YJACK AMP® Wireless Current Probe while calculating power draw and system Energy Efficiency Ratio (EER).
-

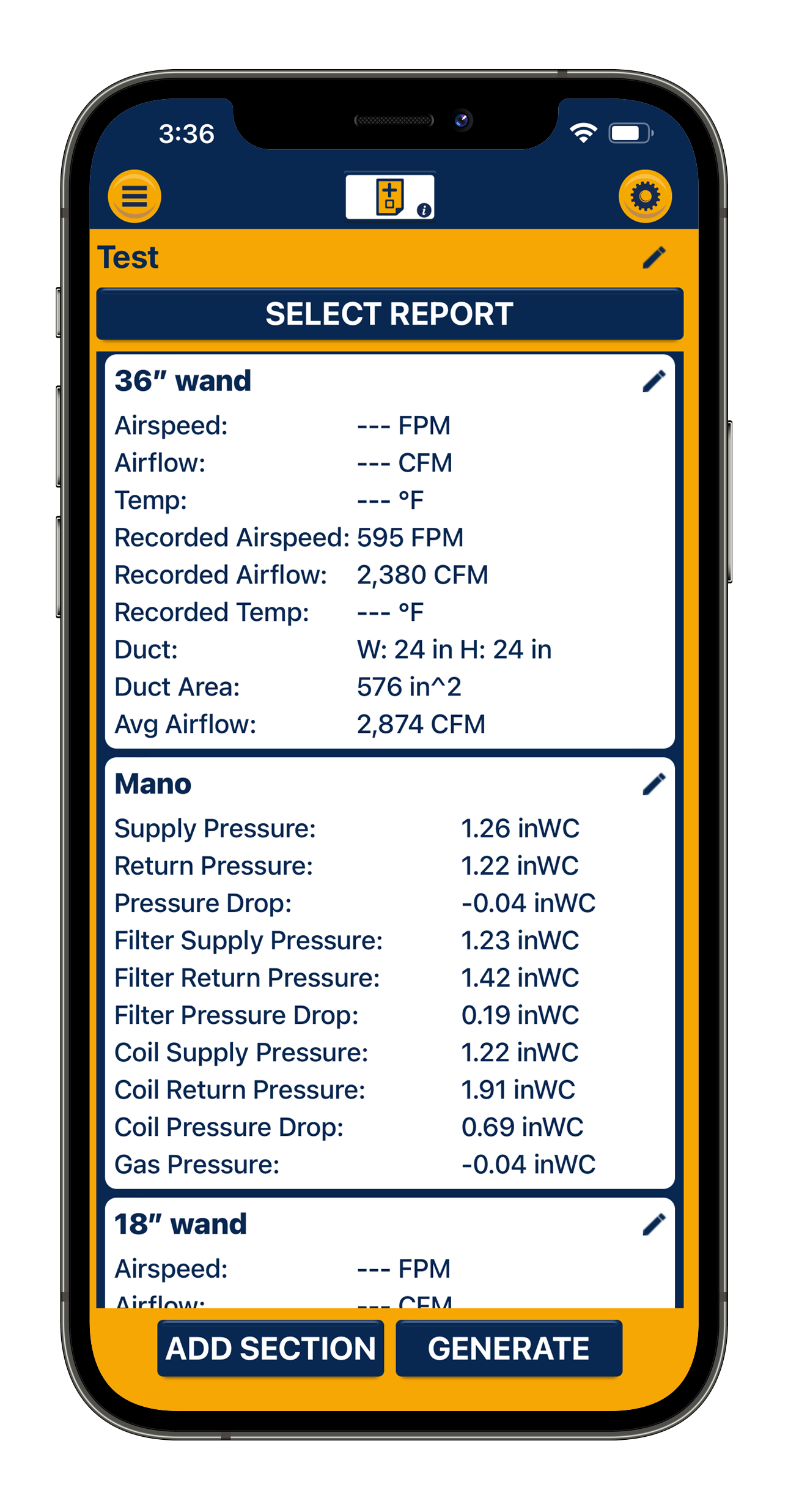

CREATE SERVICE REPORTS
Service report feature creates highly customizable PDF reports of system measurements and service information while storing past jobs and reports.
-
ANEMOMETER
Automatically calculates quantity and location of readings in rectangular and circular ducts. Complete single line recordings for duct flow comparisons.
-
ENHANCED DATALOGGING
Record data from one or all current session types as desired. Choose from a variety of sampling rates depending on user need. Live updates to selected devices, units, elevation, refrigerant selection appended to existing datalogs. Start and stop datalogging at will, save for later or share via email for remote analysis.
TITANMAX™ DIGITAL MANIFOLD KIT WITH YJACK® WIRELESS PROBES
40887 KIT INCLUDES:
- YJACK® Vacuum Gauge (P/N 67066)
- Set of (6) 60” PLUS II™ Manifold Hoses: (3) RYB compact ball valves (P/N 29985); (1) Y 3/8” str x 3/8” 45° (P/N 18160); (2) compact ball valve 1/4” x 5/16” (P/N 29425 and 29465)
- (2) YJACK® Temperature Clamps (P/N 67061)
- USB-C Charging/Data Cable (P/N 40847)
- Backpack - Multi-Pocket (P/N 40845)
