Overview

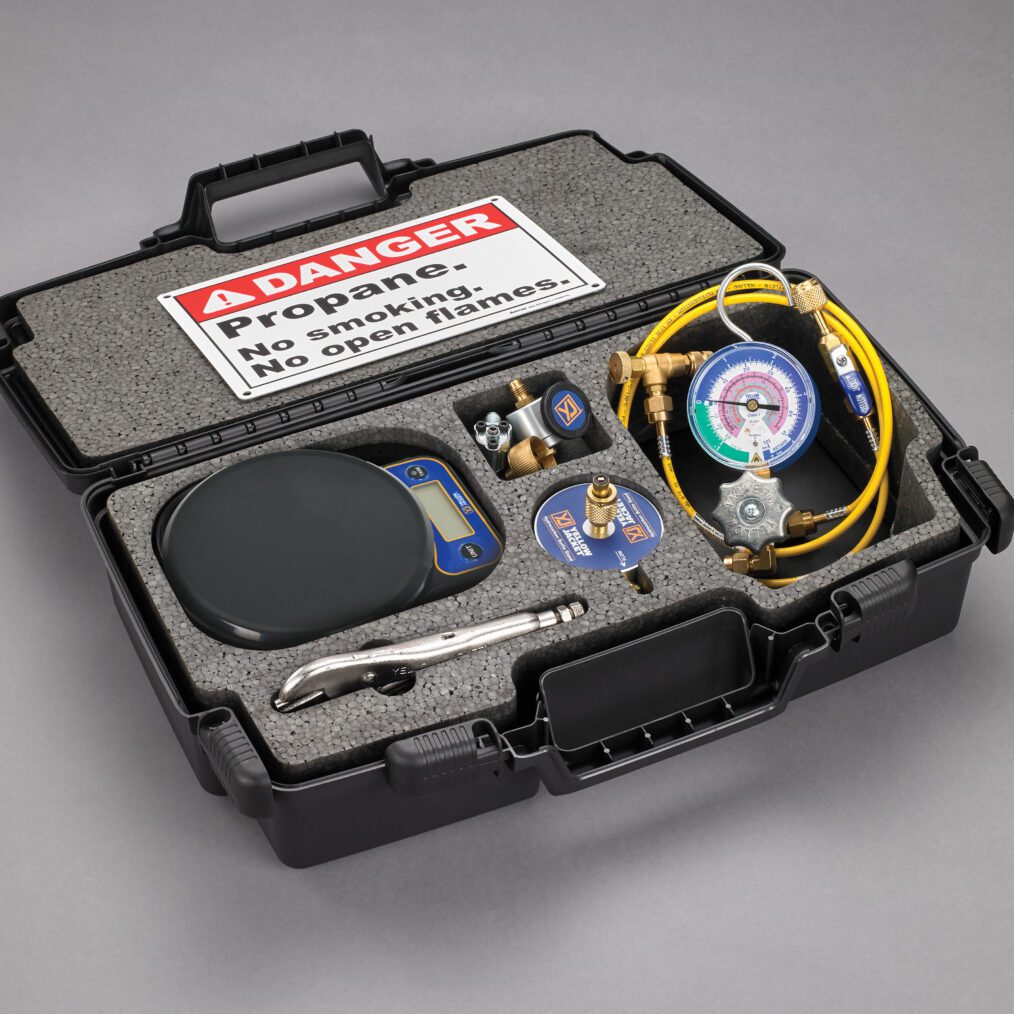

The bottle stand and high precision scale make it easy to accurately weigh the critical charge required for these systems.

The YELLOW JACKET® Hydrocarbon Charging Kit provides all the necessary tools to charge R-290 (propane) and R-600a (isobutane) hydrocarbon systems safely and effectively. The single valve manifold and small ID hoses allow for effective system pressure measurement while minimizing the impact on the system charge. The bottle valve and adapters offer compatibility with a variety of R-290 and R-600a refrigerant bottles.

BOTTLE COMPATIBILITY

There are many different refrigerant bottle styles in the market for R-290 and R-600a. With that in mind, the YELLOW JACKET® Hydrocarbon Charging Kit has been designed to support these various bottle configurations. The 61008 Hydrocarbon Bottle Valve works with most self-sealing 7/16” threaded bottle connections. When working with 1” threaded bottle connections, the 61009
Hydrocarbon Bottle Adapter can be used. The 19201 90° Quick Coupler (pictured) even provides the ability to attach puncture-style and other right-angle bottle valves for accurate liquid charging.

Contact for Purchase

Print
  • FEATURES

    Features & Benefits

    • Compact charging scale provides 0.05 g (0.01 oz) resolution for
      accurate charging
    • Bottle stand offers stability for liquid charging with inverted
      refrigerant bottles
    • Single valve manifold with 0.08” (2mm) ID x 24” REFFLEX® hoses
    • Bottle valve for 7/16” threaded bottles
    • Bottle adapter for 1” threaded bottles
    • 90° quick-coupler fitting for compatibility with piercing and other
      right-angle bottle valves
    • Line tap valve for system connection to 1/4”, 5/16” or 3/8” process lines
    • Vice grip pinch-off tool for crimping process tube after service is completed
    • Safety placard provides visual warning of flammability risk during service
    • Rugged case to protect the equipment when not in use
    • One-year warranty
    • Made in USA
  • SPECIFICATIONS

    Overall Kit

    • Compatible Refrigerants: R-290 and R-600a
    • System Connections: 1/4”, 5/16”, 3/8” OD Tubing
    • Operating Temperature: 0° to 130°F (-18° to 55°C)
    • Operating Pressure: -14.7 to 101 psi (-1 to 7 bar)
    • Bottle Compatibility: Valve and adapter work with most 7/16” and 1” threaded bottle connections. The 19201 90° Quick Coupler allows for connection of piercing-type and other right-angle bottle valves.

    Charging Scale

    • Capacity: 13.22 lb (6 kg)
    • Accuracy: 0.1%
    • Units of Measure: Grams (g), Pounds (lb), Pounds & Ounces (lb/oz),
      Ounces (oz), Milliliters (ml)
    • Resolution: 0.01 oz (0.05 g)
    • Overload Protection: Yes
    • Power: (3) AAA Batteries (included)
    • Battery Life: 50+ hours
    • Auto-Off Timer: 2 minutes after last reading change (see QSG to change to auto-off timer to 5 minutes before each use)

    Hydrocarbon Single Valve Manifold

    • Pressure Range: -14.7 to 101 psi (-1 to 7 bar)
    • Refrigerants: R-290 and R-600a (saturation temperatures in °F and °C)
    • Hose Length: 24” (610 mm)

    Series 41 Hydrocarbon 2-Valve Manifold (sold separately from Hydrocarbon Charging Kit)

    • Pressure Units: psi/bar
    • Refrigerants: R-290 and R-600a (saturation temperatures in °F and °C)
    • Hose Length: 24” (610 mm)
    • Hose Fitting: Quick Coupler
  • DOCUMENTS
  • UPC
    UPC # DESCRIPTION
    61001 Hydrocarbon Charging Kit
    REPLACEMENT PARTS
    19201 90° Quick Coupler (for right-angle bottle valves)
    40349 Low-Side Manifold R-600a/290
    49188 3-1/8″, Blue Compound, bar/psi, R-600a/290 Gauge (°F/°C)
    61002 HC Kit Bottle Stand
    61003 HC Kit Scale
    61004 HC Kit Manifold Assembly (manifold, hoses, connectors)
    61005 HC Kit Hose (single 0.08″/2 mm x 24″ yellow hose)
    61008 HC Kit Bottle Valve (for 7/16″ threaded bottle connections)
    61009 HC Kit Bottle Adapter (for 1″ threaded bottle connections)
    61010 Line Tap Valve
    61013 Propane Safety Placard
    60661 Vice Grip Pinch-Off Tool
    93844 1/4″ Compact Ball Valve MFL x FFL
    SERIES 41 HYDROCARBON 2-VALVE MANIFOLD – SOLD SEPARATELY
    41868 Series 41 Hydrocarbon 2-Valve Manifold with 24″ (610 mm) RYB REFFLEX® Hoses
    41867 Series 41 Hydrocarbon 2-Valve Manifold
    61015 Hydrocarbon Hoses 24″ (610 mm) RYB REFFLEX® 3-pak
