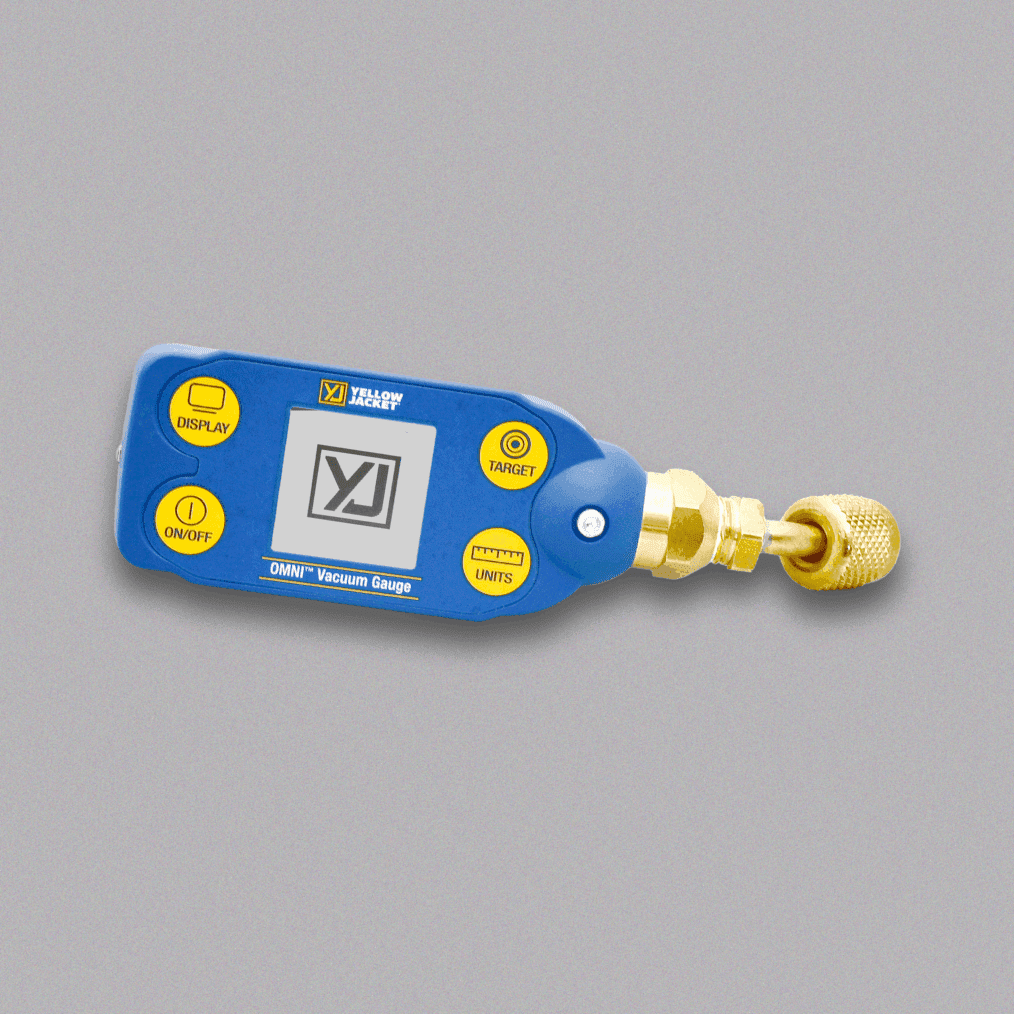

Omni Digital Vacuum Gauge
View Larger

Overview

The YELLOW JACKET® OMNI™ Digital Vacuum Gauge is an easy-to-use, compact vacuum gauge that is loaded with features for the price. And it’s rugged, too. With a high impact, glass reinforced housing, it survives moisture and accidental drops or attachment to a high pressure line. The easy-to-clean vacuum sensor handles 450 psi positive pressure and reads several units of vacuum (microns, millibar, Torr, and Pascal).

  • FEATURES
    • Broad sensor range
    • Visual signal when target vacuum level is reached
    • Electronic paper display for clear visibility – even in direct sunlight
    • Rich and intuitive user interface – turn it on and its ready to use with default settings
    • 45° degree bend for fitting (1/4” or 5/16”)
    • Automatic power down and time out
    • Power savings – multiple time-out selections
    • Low battery indicator and automatic power-down when inactive
    • Adapter fittings available
    • One year warranty
    • Made in the USA
  • SPECS

    Vacuum Reading Resolution

    • 1 micron (from 1,000 to 5 microns)
    • 10 microns (from 10,000 to 1,000 microns)
    • 100 microns (from 99,999 to 10,000 microns)

    Display Vacuum Measurement Accuracy

    • +/- 20% of reading (from 10,000 to 25 microns)

    Vacuum Reading Range

    • 5 to 99,999 Microns
    • 133.3 mBar, 100 Torr, 13,333 Pa
    • Progress bar-graph from Atmosphere (ATM)
    • To 99,999 Microns
    Proof Pressure  450 psi
    Working Temperature  32°F to 104°F (0°C to 40°C)
    Storage Temperature  -4°F to 140°F (-20°C to 60°C)
    Working Humidity  0-95% RH (non-condensing) IP
    Class  IP-50
    Battery Life  100+ hours continuous
    Battery  (2) AAA batteries (included)
    Size  6” long x 1.6” wide x 1.6” thick including fitting (15.3 x 4 x 4 cm)
    Weight  0.39 lb (175 grams)
    Warranty  One year
  • DOCUMENTS
  • UPCs

    UPC#

    Description

    69020

    OMNI™ Digital Vacuum Gauge with 1/4” Coupler

    69021

    OMNI™ Digital Vacuum Gauge with 5/16” Coupler

    69030

    Vacuum Sensor Cleaning Kit

    69026

    Replacement Battery Door

    19020

    Replacement Gaskets for 1/4” and 5/16” (10 pak)
