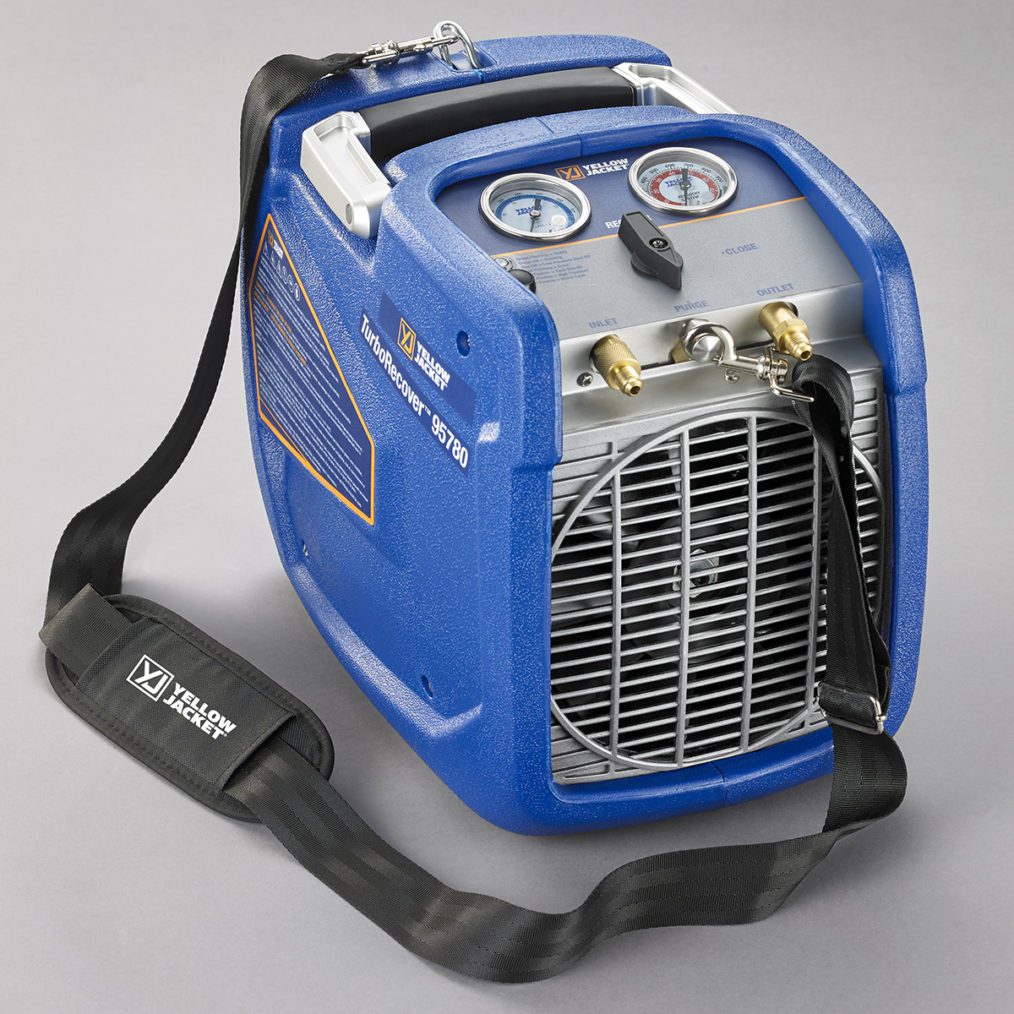

TurboRecover® Recovery Machine

View Larger

Overview

TurboRecover® for fast and effective refrigerant recovery.

The YELLOW JACKET® TurboRecover® has all the features you need for fast and effective refrigerant recovery. The powerful twin-cylinder, oil-less compressor and 1.25 hp Brushless DC (BLDC) motor ensure fast recovery of every system. Lightweight design and included shoulder strap allow for easy transportation to any jobsite. The single control valve and status indicator LED make it the simplest recovery machine on the market!

Dual-gauge design allows for monitoring of the system and tank pressures simultaneously and integrated low-pressure switch automatically powers down the machine when the system reaches 10” of vacuum. Integrated purge circuit clears residual refrigerant from the machine, preventing cross-contamination when changing from one refrigerant to another. The reusable mesh particulate filter is integrated into the suction port and can be easily cleaned or replaced. TurboRecover® includes all of these great features to make your job easy.

Contact for Purchase

Print
  • FEATURES
    • Fully automatic operation for fast recovery of Class III, IV and V refrigerants including R-410A and A2L refrigerants
    • Powerful twin-cylinder, oil-less compressor and 1.25 hp Brushless DC (BLDC) motor ensures fast recovery
    • Lightweight design and included shoulder strap allow for easy transportation
    • Single valve control for simple operation and easy changeover from recover to purge
    • Status indicator LED provides notification of machine faults and completed recovery
    • Dual-gauge design allows for monitoring of the system and tank pressures simultaneously
    • Low pressure switch provides automatic shut-off when unit reaches 10” of vacuum
    • Integrated purge function clears residual refrigerant to prevent cross-contamination
    • Reusable mesh particulate filter is integrated into the suction port and can be easily cleaned or replaced
    • Controls and gauges inset for protection and angled for easy access and viewing
    • Senses back pressure from tank and shuts off automatically at 517 psi for safety
    • High air flow fan with a micro-channel condenser to keep the unit running cool
    • 10’ Locking power cord(s) eliminate the need for extension cord
    • POWER SOURCE: For P/N 95780 and 95782, use 120 VAC, 60 Hz. For P/N 95783, use 100-240 VAC, 50/60 Hz.
    • Tested by UL to ARI 740-2016 and certified by Intertek to meet CSA C22.2 No. 120
    • CSA C22.2#100:2014 Ed.7+U1, UL 1004-7:2018 Ed.3+R:Aug2022
    • CSA C22.2#77:2014Ed.8+E1, UL 1004-1:2012 Ed.2+R:07 Aug2018
    • CSA C22.2#120:2013 Ed.4
    • Ignition Proof design tested and approved to ANSI/ISA 12.12.01:2016 Ed.7
    • One-year warranty
  • SPECIFICATIONS
    • Capabilities: Vapor, liquid, push/pull
    • Refrigerants: All Class III, IV, and V, including R-410a and A2L refrigerants
    • Compressor: Driven by 1.25 hp BLDC motor, twin cylinder, oil-lesS
    • POWER SOURCE: For P/N 95780 and 95782, use 120 VAC, 60 Hz. For P/N 95783, use 100-240 VAC, 50/60 Hz.
    • Amps: 12.0A
    • High-Pressure Shut-Off: 517 psi/35 bar – auto reset
    • Operating Temperature: 32° to 120°F (0° to 49°C)
    • Weight: 25.2 lbs (11.4 kg)
    • Dimensions: 14.5”L x 9.5”W x 12”H (370mm x 240mm x 305mm)
  • DOCUMENTS
  • VIDEOS
  • UPCs
    UPC DESCRIPTION
    95780 TurboRecover® Recovery Machine
    95782 TurboRecover® with Tank Overfill Switch
    EXPORT
    95783 TurboRecover® with EU, UK and AU/NZ Power Cords
    REPLACEMENT PARTS
    92762 IEC Connector for  BLDC Vacuum Pump Motors
    95577 TurboRecover® Shoulder Strap
    95578 TurboRecover® Suction Screen Filter/FTG
    95579 TurboRecover® Tethered Caps, Pair
    95580 TurboRecover® IEC Locking Power Cords
    95581 TurboRecover® Selector Knob and Screw
    95582 TurboRecover® 95782 TOS Shorting Cap
