Icon, Yellow Jacket Badge

Mini-Split Tool Kits

View Larger

Overview

Upgrade to the YELLOW JACKET® Deluxe Mini-Split Tool Kit 60994 for the most complete set of premium tools designed for the growing variety of mini-split brands and sizes.

ENHANCEMENTS:
The Deluxe Mini-Split Tool Kit includes the YELLOW JACKET® Digital Adjustable Torque Wrench with a second wrench head for tube fittings up to 41mm hex size. The kit also includes a premium TITAN® 4-valve manifold and compact ball valve hoses, a dedicated heavy duty evacuation hose, a complete set of imperial and metric hex keys, a 10 pack of replacement Schrader cores, a telescoping inspection mirror, and additional service fittings.

  • Designed for all mini-split refrigerants (R22/404A/410A)

The YELLOW JACKET® Mini-Split Tool Kit 60993 includes the Digital Adjustable Torque Wrench.  This vital tool captures and displays torque measurement in real time, providing users with unprecedented levels of control and accuracy.

  • Designed for all mini-split refrigerants (R22/407C/410A)
  • A convenient, cost-effective way to get the tools you need to install or repair virtually any mini-split unit on the market
  • Take the guesswork out of finding the right tool for the job
  • Meet manufacturers’ specifications on mini-split installations and repairs

Contact for Purchase

Print
  • FEATURES

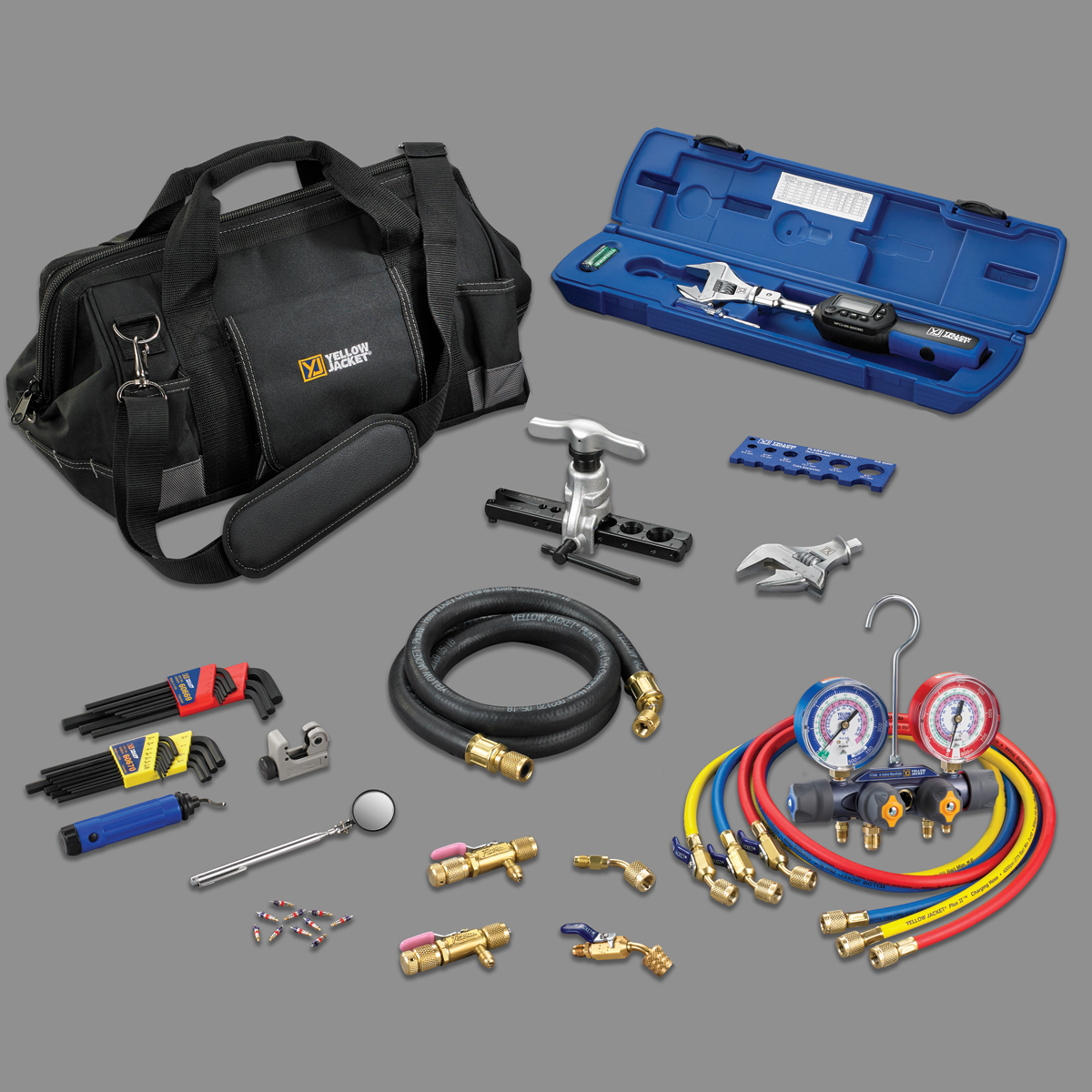

    Deluxe Mini-Split Tool Kit 60994 Includes:

    TITAN® 4-Valve Manifold (PN 49963):
    • Designed to handle all mini-split refrigerants and pressures (including heating modes)

    60” PLUS II™ Hoses (PN 29985):
    • Rated for 4000 psi (276 bar) minimum burst and 800 psi (55 bar) maximum working pressure. (RYB) 1/4” with 1/4” compact ball valve x 1/4” flare fittings

    Adjustable Digital Torque Wrench (PN 60648):
    • Two adjustable spanner heads fit flare nut sizes .2” to 1.18” (5 to 30 mm PN 60647) and .39” to 1.61” (10 to 41 mm PN 60625), with a torque measuring range of 3.1 to 62.7 ft. lbs. (4.2 to 85 N-m)

    Eccentric Cone Flare Tool (PN 60295):
    • Creates high quality flares for 3/16” to 3/4” O.D. tubing

    Flare Sizing Gauge (PN 60297)

    Imperial Hex Keys – 12 sizes (PN 60670): .05”, 1/16”, 5/64”, 3/32”, 7/64”, 1/8”, 9/64”, 5/32”, 3/16”, 7/32”, 1/4”, 5/16”

    Metric Hex Keys – 9 sizes (PN 60669): 1.5 mm, 2 mm, 2.5 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm

    Tube Cutter (PN 60121) and Deburring Tool (PN 60163)

    1-1/4” Diameter Glass Mirror (PN 78098):
    • Telescopic head with pocket clip

    60” Heavy Duty Hose (PN 93891):
    • 1/2” internal hose diameter creates full, quicker flow. Vacuum rated to 20 microns. Black hose, 3/8” x 5/16” flare fittings

    Two Vacuum/Charge Valves with Side Port:
    • 5/16” x 1/4” x 1/4” (PN 18986)
    • 5/16” x 5/16” x 5/16” (PN18985)

    1/4” Male Flare x 5/16” Female Flare Adapter (PN 19173):
    • With Schrader valve

    10-Pack of Replacement Schrader Cores (PN 19305)

    Tool Bag 16” (PN 60990):
    • Durable nylon bag with strap with over 25 pockets

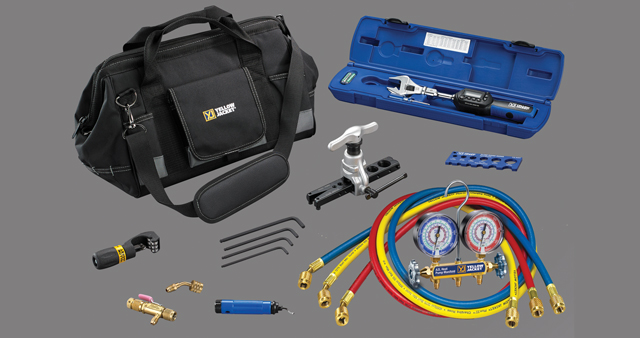

    Mini-Split Tool Kit 60993 Includes:

    Heat Pump Manifold 41019
    • Designed to handle all mini-split refrigerants and pressures (including heating modes)

    60″ PLUS II Hoses 3 Pack #21985 (RYB), 1/4″ with 1/4″ flare fittings – Rated for 4000 psi (276 bar) minimum burst and 800 psi (55 bar) maximum working pressure

    Eccentric Cone Flare Tool 60295
    • Creates high quality flares for 3/16″ to 3/4″ O.D. tubing

    Flare Sizing Gauge (PN 60297)

    Hex Key Set 60749
    • Mini-Split Hex Keys: 5/32″, 3/16″, 5 mm, 6 mm

    Vacuum /Charge Valve with Side Port 18986
    • 5/16″ x 1/4″ x 1/4″

    Digital Adjustable Torque Wrench 60648
    • Adjustable spanner header fits flare nuts sizes .2″ to 1.18″ (5 to 30 mm), with a torque measuring range of 3.1 to 67.7 ft. lbs. (4.2 to 85 N-m)

    Tube Cutter 60101 and Deburring Tool 60163

    Tool Bag 16″ 60990
    • Durable nylon bag with strap and over 25 pockets

  • DOCUMENTS
  • VIDEOS
  • UPCs

    UPC#

    Description

    60991

    Mini-Split Tool Kit with Tool Bag, R-22/407C/410A Heat Pump Manifold

    60992

    Mini-Split Tool Kit with Tool Bag, R-410A/32 Heat Pump Manifold

    60993

    Mini-Split Tool Kit with Digital Adjustable Torque Wrench

    60994

    Deluxe Mini-Split Tool Kit with Digital Adjustable Torque Wrench

    REPLACEMENT PARTS FOR 60993

    18986

    5/16″ x 1/4″ x 1/4″ Vacuum/Charge Valve with Side Port

    21985

    3-pack 60″ PLUS II™ RYB Hoses

    41019

    		 R-22/407C/410A Heat Pump Manifold

    60101

    Tube Cutter, 1/8″ to 1-1/8″ Tube Diameter

    60163

    		 Deburring Tool (includes 1 replacement blade 60164)

    60295

    		 Eccentric Cone Flare Tool

    60297

    		 Flare Sizing Gauge

    60647

    Adjustable Torque Wrench Head 5-30 mm (included in 60648)

    60648

    Digital Adjustable Torque Wrench (includes 60647 Adjustable Torque Wrench Head 5-30 mm)

    60749

    Hex Key Set

    60990

    		 Tool Bag 16″

    REPLACEMENT PARTS FOR 60994

    18985

    		 5/16″ x 5/16″ x 5/16″ Vacuum/Charge Valve with Side Port

    18986

    		 5/16″ x 1/4″ x 1/4″ Vacuum/Charge Valve with Side Port

    19173

    		 1/4″ Male Flare x 5/16″ 45° Female Flare Adapter

    19305

    		 10-pak of Schrader Valves

    29985

    		 3-pak 60″ PLUS II RYB Compact Ball Valve Hoses

    49963

    		 TITAN® 4-Valve Manifold R-22/404A/410A

    60121

    		 Mini Tube Cutter 1/4″ to 7/8″

    60163

    		 Deburring Tool (includes 1 replacement blade 60164)

    60295

    		 Eccentric Cone Flare Tool

    60297

    		 Flare Sizing Gauge

    60625

    		 Adjustable Torque Wrench Head 10-41 mm

    60647

    		 Adjustable Torque Wrench Head 5-30 mm (included in 60648)

    60648

    		 Digital Adjustable Torque Wrench (includes 60647 Adjustable Torque Wrench Head 5-30 mm)

    60669

    		 Metric 9-piece Hex Key Set

    60670

    		 Imperial 12-piece Hex Key Set

    60990

    		 Tool Bag 16″

    78098

    		 1-1/4″ Diameter Round Mirror

    93891

    		 60″ Heavy Duty Hose, 1/2″ I.D., 3/8″ x 5/16″ 45° fittings
