YJACK VAC® VACUUM GAUGE
Overview

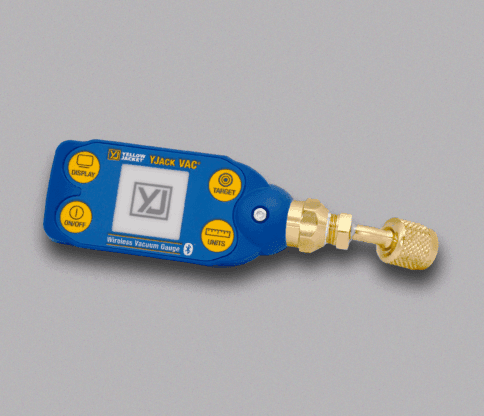

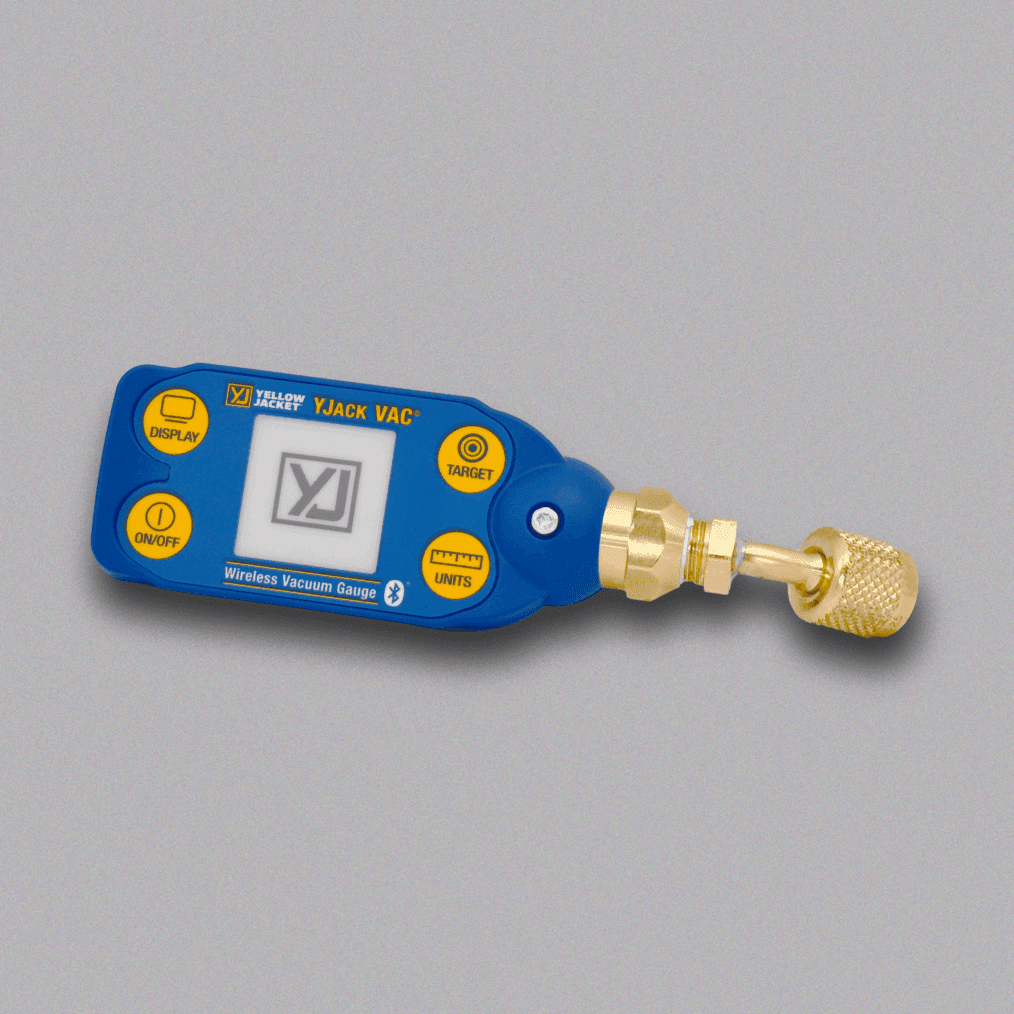

The YJACK VAC® Wireless Vacuum Gauge 67066 by YELLOW JACKET® provides all the features needed for effective system evacuation. It offers full range vacuum measurement from atmospheric pressure down to 1 micron and the robust sensor ensures accurate readings during every job. Use the integrated display to view system vacuum readings and configure target vacuum levels or track the evacuation remotely with the YJACK VIEW® app , TITANMAX™ or P51-870 TITAN® Digital Manifold. Perform hold tests and log system data for service records and reporting.
1000 ft line-of-sight signal range starting with serial number YJVAC-2434-9755
LEARN ABOUT OTHER YJACK® WIRELESS PROBES YJACK SERIES.
New features and innovative tools may be added to our firmware. To check to see if you have the most up-to-date firmware update, click on the button below.
-
FEATURES
- Wireless system vacuum measurement from atmospheric pressure to 1 micron
- Robust sensor resists pressure shock and oil contamination
- 45° x 1/4” quick-coupler fitting for versatile system attachment
- Electronic paper display for clear visibility – even in direct sunlight
- Bluetooth® 4.2 compliant low energy radio
- 1000 ft line-of-sight signal range starting with serial number YJVAC-2434-9755*
- Compatible with YJACK VIEW® App, TITANMAX™ and P51-870 TITAN® devices (firmware version v3.0 or later)
- Proof Pressure: 450 psi (31 bar)
- Vacuum Reading Range: 1 to 760,000 microns with the YJACK VIEW® App (1 to 99,999 microns on integrated display)
- Accuracy: +/- 20% of reading (from 10 to 25,000 microns)
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -4°F to 122°F (-20°C to 50°C)
- Up to 240-hour battery life with power saving mode (2x AAA included)
- 2-year warranty
- Made in the USA
-
DOCUMENTS
-
VIDEOS
-
YJACK VIEW App Evacuation Session -
YJACK VIEW App General Settings -
YJACK VIEW App Report Generation -
YJACK PRESS VAC AMP Graphic Video 2021 7 -
YJACK Wireless Probes ALL Graphic Video 2022
-
HVAC System Evacuation with BULLET DC and YJACK VAC Vacuum Gauge 2021 12 -
HVAC System Evacuation with YJACK VAC Vacuum Gauge and YJACK VIEW App. -
Using the YELLOWJACKET® TITANMAX™ Digital Manifold with the YELLOWJACKET® YJACK VAC® Vacuum Gauge
-
-
UPC
UPC DESCRIPTION 67066 YJACK VAC® Wireless Vacuum Gauge 67059 Replacement Battery Door
