TITANMAX® Digital Manifold
Overview
Technological Innovations Combined with the Most Comprehensive Apps…YJACK VIEW® and measureQuick®.

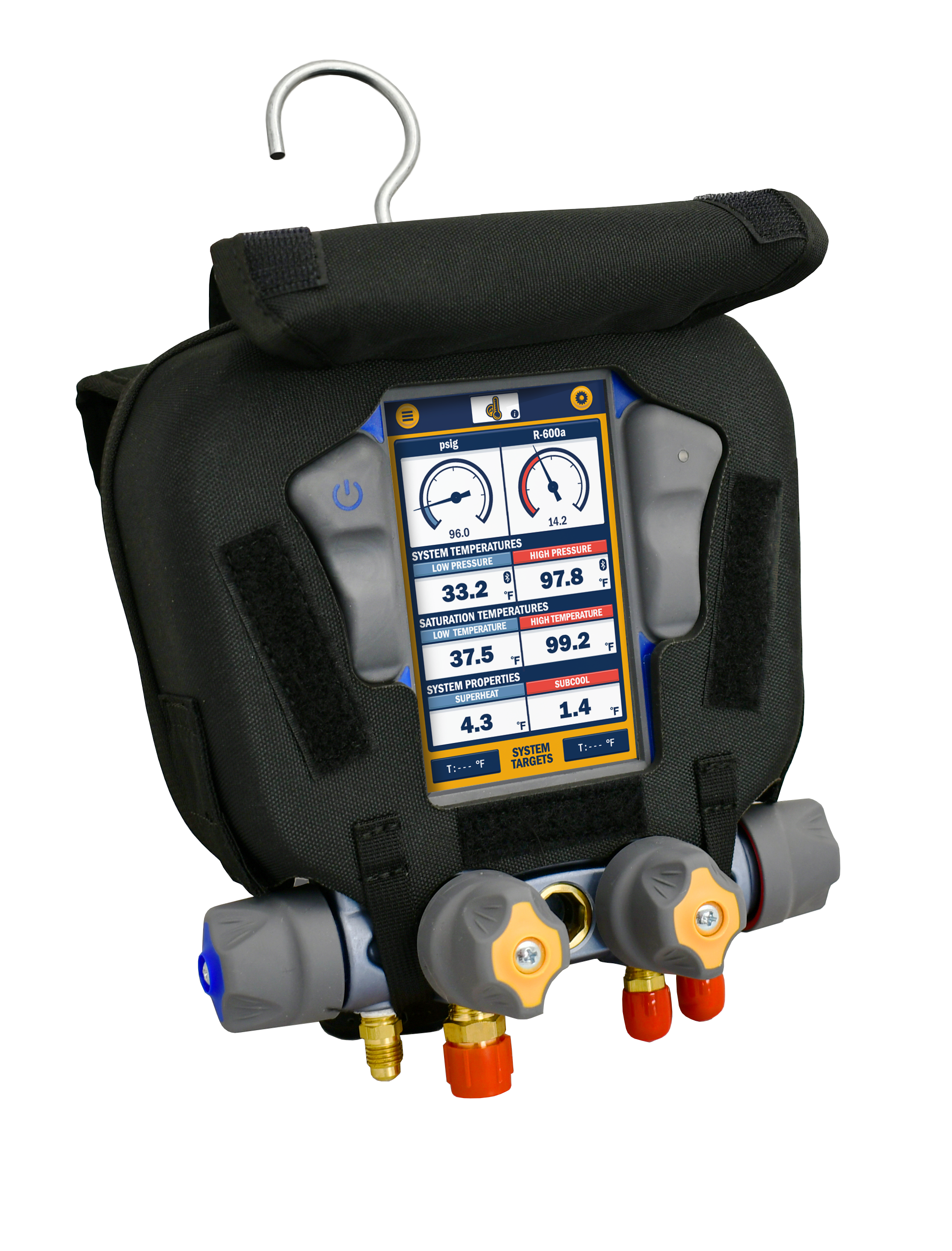

The YELLOW JACKET® TITANMAX® Digital Manifold provides the easiest path to system measurements. This 4-valve manifold provides fast and accurate measurements for refrigeration and A/C systems. The high resolution backlit touchscreen display erases the need for multi-function buttons and provides clear graphical and digital measurements. It also features internal data logging. Connect via Bluetooth® to the YJACK VIEW® App or measureQuick® App for further analysis.
TITANMAX® P/N 40881 includes TITAN® Temperature Clamps (2), Vacuum Sensor and USB-C Charging/Data Cable. Backpack kits also available.
Protect your TITANMAX® Manifold, get the TITANMAX® Cover (PN 40848)
The YELLOW JACKET® YJACK VIEW® App provides seamless integration with YJACK® Devices and TITANMAX® and P51-870 TITAN® Digital Manifolds offering a complete HVAC/R system diagnostic solution. Just use your YJACK®, TITANMAX® and P51-870 TITAN® devices with your smart phone for complete system analysis.
Easily receive and analyze live data from all powered on, nearby YJACK®, TITANMAX® and P51-870 TITAN® devices including system pressure, temperature, vacuum, psychometrics and current draw. Includes a variety of session types useful for diagnosing any HVAC/R system.
New features and innovative tools may be added to our firmware. To check to see if you have the most up-to-date firmware update, click on the button below.
-
FEATURES
• Measures high and low side pressures and temperatures
• Displays vapor and liquid saturation temperatures
• Calculates system superheat and subcooling
• On-board data logging; export to your computer with USB or to your phone via YJACK VIEW® App
• Compatible with measureQuick® App
• Pressure hold mode displays rate of change for vacuum and positive pressure measurements
• Wirelessly measure and display relative humidity, dry bulb, wet bulb and dew point temperature alongside system pressure and temperature measurements with YJACK DEW®
• High resolution, full color, backlit, 5″ touchscreen display
– Ultimate user interface – information on major screens
– Adjustable timing for auto shut-off
– Touchscreen never has to be calibrated
– Digital and graphical pressure/temperature measurements
– Choose from relevant refrigerant profiles stored including A2L – may designate 3 favorites
• Robust housing with ergonomic grip
– 4-way TITAN® valve block
– Integrated magnets for mounting on equipment cabinet may also be used to store TITAN® Temperature Clamps
– Pivoting hook
– Convenient connections for USB port, temperature clamps, and vacuum sensor
• External vacuum sensor with vacuum target notification
– Vacuum measurements, set targets and leak testing
• Larger temperature clamps (2) for up to 1-5/8″ pipes
• Bluetooth® 5.2; range up to 1,000 feet
• Maximum working pressure 740 psia (51.0 bar)
• Multiple languages: French, Spanish, German and English
• Rechargeable battery with life indicator
– Continuous use no backlight: 80 hours
– Continuous use with full backlight: 4.5 hours
• US and INTL units (bar, psia, psig, kPa, MPa, kg/cm2)
• Meets IP52 standards
• Two-year warranty -
DOCUMENTS
- 10239 TITANMAX Digital Manifold Spec Sheet 2026-3
- 10174 YJACK Series Product Spec Sheet 2024 10
- 501119 TITANMAX QSG RevB ENGLISH 2025
- TITANMAX QSG RevA SPANISH 2025
- TITANMAX QSG RevA FRENCH 2025
- TITANMAX QSG RevA GERMAN 2025
- 502006 RevC YJACK QSG 2024 10-14
- TITANMAX User Manual RevB ENGLISH 2025
- TITANMAX User Manual RevB SPANISH 2025
- TITANMAX User Manual RevB FRENCH 2025
- TITANMAX User Manual RevB GERMAN 2025
- YJACK Manual RevE 2024 4
- YJACK VAC Manual RevA 2024 7
- TITANMAX® and YJACK® Refrigerant List 2024
- Vacuum Sensor Cleaning Instructions – Quick Cleaning Method
- Vacuum Sensor Cleaning Instructions – Deep Cleaning Method
-
VIDEOS
-
TITANMAX™ DIGITAL MANIFOLD for Maximum Performance. -
TITANMAX Digital Manifold IN USE -
TITAN® Temperature Clamps with YELLOW JACKET® TITANMAX™ -
Using the YELLOWJACKET® TITANMAX™ Digital Manifold with the YELLOWJACKET® YJACK DEW® -
Using the YELLOWJACKET® TITANMAX™ Digital Manifold with the YELLOWJACKET® YJACK VAC® Vacuum Gauge -
Using the YELLOWJACKET® TITANMAX™ Digital Manifold with the YELLOWJACKET® YJACK® Temperature Clamps
-
-
IMAGES
-
-
PART NUMBERS
P/N DESCRIPTION 40881 TITANMAX® Digital Manifold: TITANMAX® Manifold, Vacuum Sensor, TITAN® Temperature Clamps (2), USB-C Cord BACKPACK KITS WITH PLUS II™ HOSES 40880 TITANMAX® Digital Manifold Kit: TITANMAX® Manifold, Vacuum Sensor, TITAN® Temperature Clamps (2), USB-C Cord, Set of (4) PLUS II™ Hoses: (3) 60″ 1/4″ RYB, (1) 60″ 3/8″ Yellow Vacuum Hose 3/8″ Straight x 3/8″ 45°, Backpack 40885 TITANMAX® Deluxe Digital Manifold Kit: TITANMAX® Manifold, Vacuum Sensor, TITAN® Temperature Clamps (2), USB-C Cord, Set of (6) PLUS II™ Hoses: (3) 60″ 1/4″ RYB, Compact Ball Valve, (1) 60″ 3/8″ Yellow Vacuum Hose 3/8″ Straight x 3/8″ 45°, (2) Compact Ball Valve 1/4″ x 5/16″, Backpack 40887 TITANMAX® Deluxe Digital Manifold with Wireless Sensors Kit: TITANMAX® Manifold, YJACK VAC® Vacuum Gauge, YJACK® Temperature Clamps (2), USB-C Cord, Set of (6) PLUS II™ Hoses: (3) 60″ 1/4″ RYB, Compact Ball Valve, (1) 60″ 3/8″ Yellow Vacuum Hose 3/8″ Straight x 3/8″ 45°, (2) Compact Ball Valve 1/4″ x 5/16″, Backpack ACCESSORIES AND REPLACEMENT PARTS 40846 TITAN® Temperature Clamp for pipes up to 1.25″ 67031 Adjustable Temperature Probe Strap 67044 Vacuum Sensor 19189 Replacement Brass Connector (1/4” Female QC 45° x 1/4” NPT Male) 67066 YJACK VAC® Vacuum Gauge 67061 YJACK® Temperature Clamp 18160 PLUS II™ Hose 3/8” Yellow Vacuum Hose 3/8” Straight x 3/8” 45° 21985 PLUS II™ Hoses 3 Pak 60” RYB, 1/4” 29425 PLUS II™ Hose Blue Compact Ball Valve 1/4” x 5/16” 29465 PLUS II™ Hose Red Compact Ball Valve 1/4” x 5/16” 29985 PLUS II™ Hoses 3 Pak 60” RYB, 1/4” Compact Ball Valve 40847 USB-C Charging and Data Cable 40845 Backpack – multi pockets 40848 TITANMAX® Cover
